Network Topology

Network Topology refers to the layout pattern of interconnections between various elements (links, nodes, etc.) of a computer or telecommunications network.

Moreover, it defines the physical or logical arrangement of devices in a network, outlining how data is transmitted and received.

Also, this conceptual framework serves as the blueprint for designing a network infrastructure, guiding the placement and connectivity of components.

Network Topology

Types of Network Topology

Let's talk about the different types of network topology.

There are several types of network topology, each with its advantages and disadvantages.

Bus Topology

In a bus network topology, devices are connected to each other using one cable, like a line. This cable is also called the backbone. The type of cable used depends on the devices in the network, like coaxial or RJ45.

Usually, there are two ends in a bus network, and data travels from one end to the other. This means data go in one direction only.

When a device wants to talk to another device in a bus network, it sends a message to everyone on the cable. All devices can see the message, but only the one it is meant for accepts and understands it.

Advantages of Bus Topology

It is easy to implement and is a cost-effective solution.
This type of network is well-suited for small networks that have limited traffic.

Disadvantages of Bus Topology

Adding more devices degrades network performance and a single bus failure affects the entire network.

Star Topology

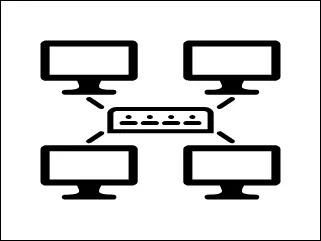

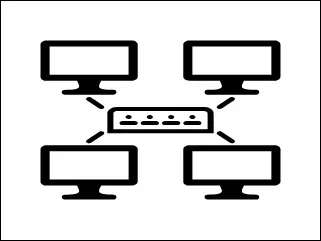

The star topology is a network configuration where each node, whether it is a computer, workstation, or peripheral, is linked to a central node or a device known as a Hub or Switch.

This means that all data transmitted within the star topology must pass through the central device before reaching its intended destination.

A hub, in this setup, distributes data packets to all the ports it is connected to. Whereas, a switch is more intelligent as it can identify which computer is connected to each port by analyzing the MAC address and storing this information in a table format.

Consequently, when a switch receives a data packet, it can determine the recipient and efficiently forward the packet to the correct computer.

Advantages of Star Topology

It's easy to install and manage, and issues with one device don't affect others.
Additionally, this simplicity contributes to efficient troubleshooting and maintenance.

Disadvantages of Star Topology

Depending on the central hub, its failure can disrupt the entire network.
Additionally, this topology requires more cabling than some others.

Ring Topology

In a ring topology, each device is connected to two other devices and forms a closed loop.

Data circulates in one direction, passing through each device until it reaches its destination.

Ring topology is easy to install and manage but managing it becomes complicated if one device or connection fails.

Advantages of Ring Topology

Simple and easy to understand.
Well-suited for small to medium-sized networks.

Disadvantages of Ring Topology

If one device or its connection fails then it can disrupt the entire network. Adding or removing devices can be challenging.

Mesh Topology

Mesh topology provides the highest level of redundancy and reliability.

Additionally, in a full mesh topology, every device is connected to every other device, creating multiple paths for data transmission.

While this enhances fault tolerance, it also increases the complexity and cost of cabling.

Advantages of Mesh Topology

High redundancy: Multiple paths for data transmission.
Fault-tolerant: The failure of one link or device doesn't affect the entire network.

Disadvantages of Mesh Topology

Expensive to implement due to the extensive cabling.
Complex to manage and configure.

Hybrid Topology

A hybrid topology combines two or more different topologies to create a more robust and flexible network.

For example, a network might incorporate elements of both star and bus topologies.

This approach allows for customization to meet specific organizational requirements.

Advantages of Hybrid Topology

Offers the benefits of multiple topologies.
Allows for flexibility and scalability.

Disadvantages of Hybrid Topology

It can be complex to design and manage.
Cost considerations may limit implementation.

Tree Topology

A tree topology refers to a network structure where devices are connected in a hierarchical manner, resembling the branches of a tree.

In this type of network, a central node often called the root, is connected to multiple child nodes, which in turn can have their own child nodes.

This hierarchical arrangement allows for efficient data transmission and easy management of the network.

Unlike other topologies, such as bus or ring, tree topology provides a clear path for data flow and ensures that each device has a dedicated connection to the root node.

Advantages of Tree Topology

One of the benefits of using a tree topology in a network is its scalability.
With a tree structure, it is easy to add or remove nodes without affecting the entire network.
This makes it a flexible option for growing networks that may need to expand or contract over time.
Additionally, tree topologies are known for their reliability, as they can easily isolate and contain network issues to prevent them from spreading throughout the entire network.
This can help in maintaining a stable and efficient network environment for users.

Disadvantages of Tree Topology

One of the drawbacks of using a tree topology in a network is that it can be quite expensive to implement and maintain.
This is because each node in the network needs to be connected to a central hub, which requires a significant amount of cabling and equipment.
Additionally, if the central hub fails, the entire network can be brought down, leading to a single point of failure.
Another disadvantage is that tree topologies can be difficult to scale, as adding new nodes can be complex and time-consuming.

Selection Factors for Network Topology

Selecting the best network topology depends on several factors, including the size of the network, the type of organization, budget constraints, and the desired level of redundancy and fault tolerance.

Moreover, each of these considerations plays a crucial role in determining the most suitable topology for a given scenario.

Also, thoughtful analysis of these factors allows network architects to make informed decisions that align with the specific needs and goals of the organization.

Size of the Network in Network Topology

The size of the network, in terms of both physical layout and the number of devices, plays a crucial role in selecting the appropriate topology.

Small networks with limited devices may benefit from simpler topologies like bus or star, while larger networks often require more complex designs like mesh or hybrid topologies.

Organizational Requirements

The selection of topology depends on the needs and requirements of an organization.

For example, a business with a focus on fault tolerance and high availability may opt for a mesh topology, while a smaller organization with budget constraints might prefer a star or bus topology.

Budget Constraints

Budgetary considerations significantly impact topology choices.

While mesh topologies offer high redundancy, the cost of implementing and maintaining such a network may be prohibitive for organizations with limited financial resources.

In such cases, a more cost-effective solution, like a star or bus topology, might be preferred.

Scalability

The ability of a network to scale and accommodate future growth is crucial.

Scaling some topologies, such as bus or star, may face limitations, while others, like mesh or hybrid topologies, are more adaptable to expanding network requirements.

Reliability and Fault Tolerance

The importance of reliability and fault tolerance varies across organizations.

Industries that require uninterrupted network connectivity, such as finance or healthcare, may prioritize fault-tolerant topologies like mesh.

In contrast, less critical environments might find the simplicity of a star or bus topology sufficient.

Conclusion

Selecting the right network topology is a foundational step in designing a robust and efficient computer network.

Moreover, each topology comes with its own set of advantages and disadvantages, making it essential to consider the specific requirements and constraints of an organization.

As technology evolves, new trends and advancements may impact the landscape of network topology.

Moreover, virtualization, cloud computing, and emerging networking technologies are likely to influence the way networks are designed and deployed in the future.

Ultimately, a thoughtful analysis of organizational needs, coupled with an understanding of the strengths and weaknesses of different topologies, is crucial for making informed decisions.

Whether it's a simple bus topology for a small office or a complex hybrid topology for a large enterprise, the chosen network topology lays the foundation for a resilient and efficient communication infrastructure.
